- Handheld AB Glue pouring machine
-
Product Number：PS-PJ220SC
Product Brand：PINSU
Product Description：
Handheld AB Glue Filling Machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive and so on.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video

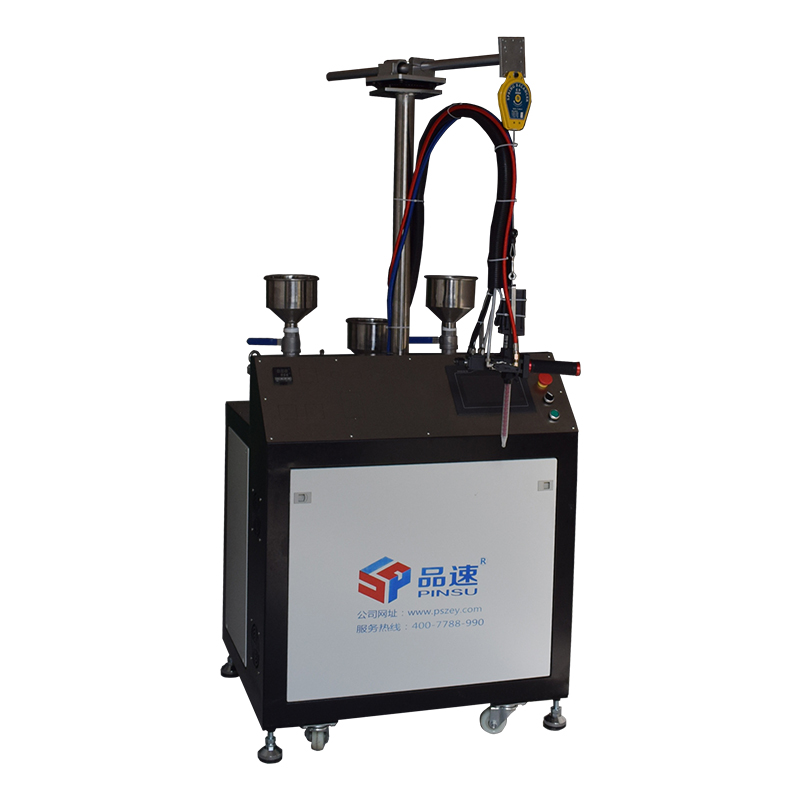

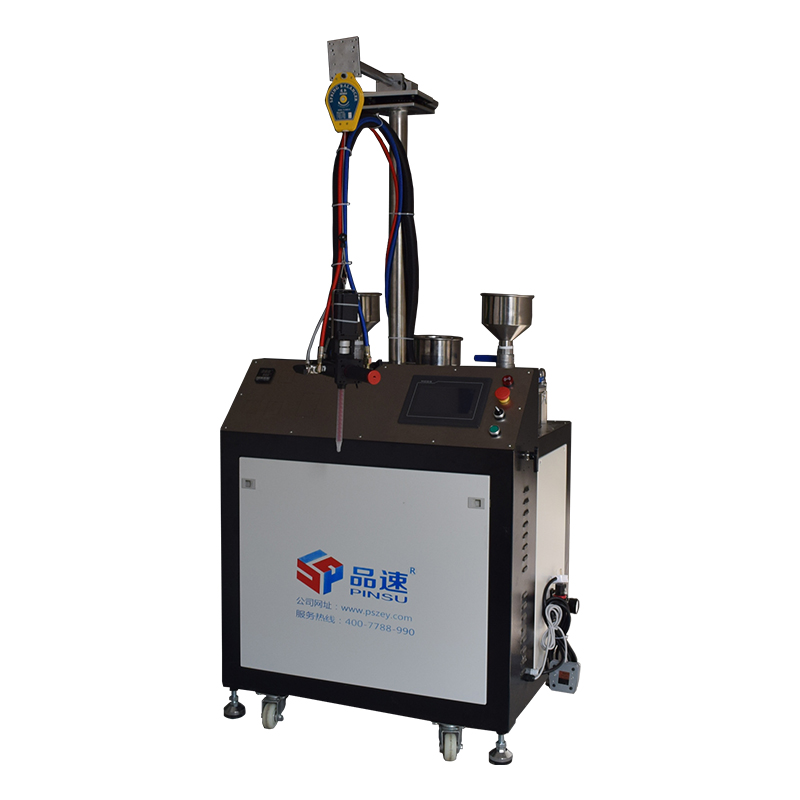

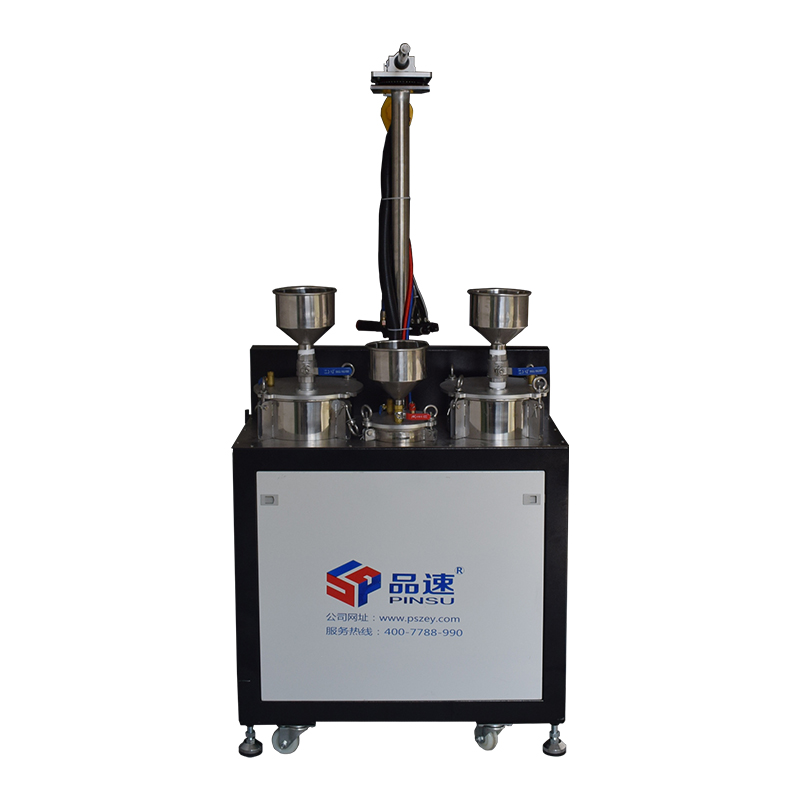

【Machine Description】
Handheld AB Glue Filling Machine is also known as manual glue filling machine, semi-automatic glue filling machine, handheld semi-automatic glue filling machine, etc. The machine can automatically proportion the glue and mix the glue automatically. The glue that can be applied is epoxy resin AB glue, polyurethane AB glue, silicone AB glue, etc..
【Machine Parameter】
|
Machine name |
|
|
Machine model |
PS-PJ220SC |
|
Machine size（L*W*H） |
85CM*65CM*179CM |
|
Applicable product sizes |
1.5 meter radius |
|
Machine weight |
135Kg |
|
Charging bucket capacity |
20L/30L/50L |
|
Cleaning bucket capacity |
5L |
|
Range of glue dosing proportion |
1：1-10：1 |
|
Measurement method |
Gear pump or screw pump (optional) |
|
Measurement accuracy |
±2% |
|
Glue dispensing accuracy |
±2% |
|
Mixed model |
Static mixing or dynamic mixing |
|
Electronic control system |
Touch screen +PLC |
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|
Machine Power |
1000W-2000W |
|
Operating pressure range |
0.4-0.8MPa |
|
operation mode |
The product is fixed and glued on the countertop |
【Machine Feature 】
1.AB glue automatic proportioning, automatic mixing, you can manually control the glue;
2. The machine is small, easy to move, simple to operate; easy to learn;
3. The charging bucket is seamlessly welded, corrosion-resistant and easy to clean;
4. We use precision metering pump to measure the glue, metering accuracy ± 2%;
5. There is a liquid level sensor in the charging bucket, the glue is not enough to alarm, to remind the personnel need to pour glue into the barrel;
6. The machine comes with a cleaning device, it can be quickly cleaned efficiently on the mixing valve, mixing tube, convenient for the next use;
7. The amount of glue, glue time can be adjusted to ensure that the product filling quality.
【Applicable Glue】
Handheld AB Glue Filling Machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive and so on.
【Scope of Application】

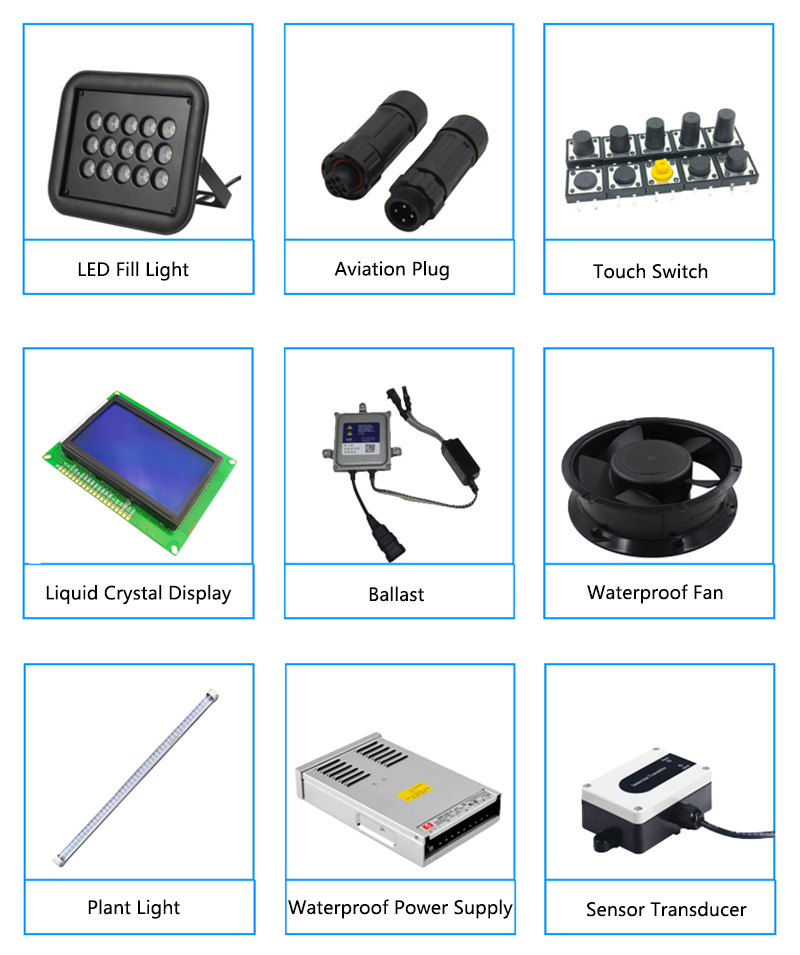

Handheld AB Glue Filling Machine can be used for LED fill light, aviation plug, touch switch, liquid crystal display, ballast, waterproof fan, plant light, waterproof power supply, sensor transducer, LED panel lights, wall washing lights, power supplies, chargers, transformers, mutual inductor, capacitors, filters, home appliance control panels and other products.
