- Multi-axis Cantilever Glue Filling Machine
-
Product Number：PS-DJ
Product Brand：PINSU
Product Description：
Multi-axis Cantilever Glue Filling Machine applied to Inductors, Transformers, Relays, Ethernet Transformers, Instrument Transformers, Drive Power, Solenoids, Flasher and others.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
【Machine Description】
Multi-axis Cantilever Glue Filling Machine, also known as Cantilever Glue Filling Machine, Multi-axis Glue Filling Machine, Cantilever Glue Filling Equipment, etc., is a highly efficient and precise glue filling equipment. It is suitable for 1:1 to 10:1 epoxy resin AB glue, polyurethane AB glue, silicone AB glue and other AB glues. With excellent stability and high efficiency, this machine can improve the production efficiency and reduce the production cost, making your products more competitive in the market. What's more, the multi-axis cantilever glue filling machine also has an accurate dosing system, which makes your products more high-quality and reliable.
【Machine Parameter】
|
Machine name |
Multi-axis Cantilever Glue Filling Machine |
|
Number of axes |
3 |
|
Electronic control system |
Touch screen +PLC |
|
Dispensing control method |
manually operated |
|
Mixed model |
Static mixing or dynamic mixing |
|
Glue dispensing accuracy |
±2% |
|
Measurement method |
Gear pump or screw pump (optional) |
|
Measurement accuracy |
±2% |
|
Operating pressure range |
0.5-0.8mpa |
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|
Machine Power |
1500w-3500w |
|
Applicable Glue |
1:1 to 10:1 epoxy resin AB glue, polyurethane PU glue, silicone AB glue |
|
Operation track |
Points, lines, circles, arcs, rectangles, S-shapes, etc |
【Machine Feature 】
1. This machine can realize automatic proportioning and mixing of AB glue and manual control of glue dispensing function;
2. the amount and time of glue dispensing can be set manually to ensure that the products are evenly dispensed;
3. according to the characteristics of AB glue, the equipment can be equipped with heating device, stirring device, vacuum machine, etc., to meet the needs of different gluing process;
4. the equipment comes with a cleaning device, can quickly and efficiently clean the mixing valve, for the next normal use to provide convenience;
5. Adopting multi-axis cantilever design, which is convenient for filling glue for large products.

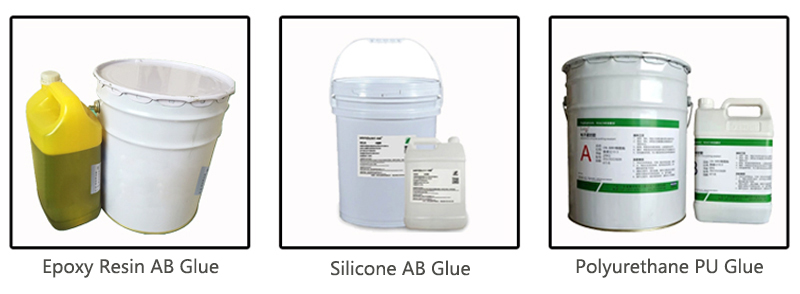

【Applicable Glue】
Multi-axis Cantilever Glue Filling Machine for 1:1 to 10:1 epoxy resin AB glue, polyurethane PU glue, silicone AB glue.

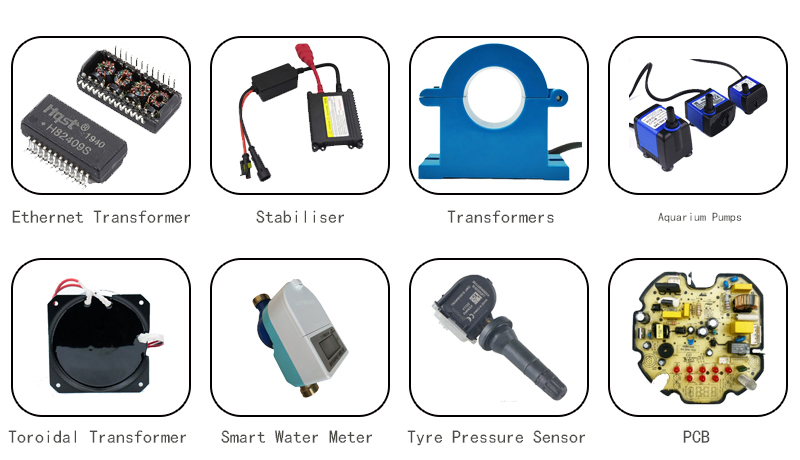

【Scope of Application】
Multi-axis Cantilever Glue Filling Machine applied to Inductors, Transformers, Relays, Ethernet Transformers, Instrument Transformers, Drive Power, Solenoids, Flasher and others.
