- AB Glue Turntable Automatic Filling Machine
-
Product Number：PJ220F/PJ220FP
Product Brand：PINSU
Product Description：
AB Glue Turntable Automatic Filling Machine is used for Filter end caps, air filter end caps, water filter end caps, other round products.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
AB Glue Turntable Automatic Filling Machine is mainly used for round products, it is suitable for 1:1-10:1 epoxy resin AB glue, polyurethane AB glue, silicone AB glue and other ab glue. AB Glue Turntable Automatic Filling Machine can realize the AB glue automatic precision measurement ratio, automatic mixing, rationing glue. The amount of glue, glue time can be manually controlled, turntable speed can also be manually adjusted, not only to improve production efficiency, but also to ensure the quality of glue.
【Machine Parameter】
|

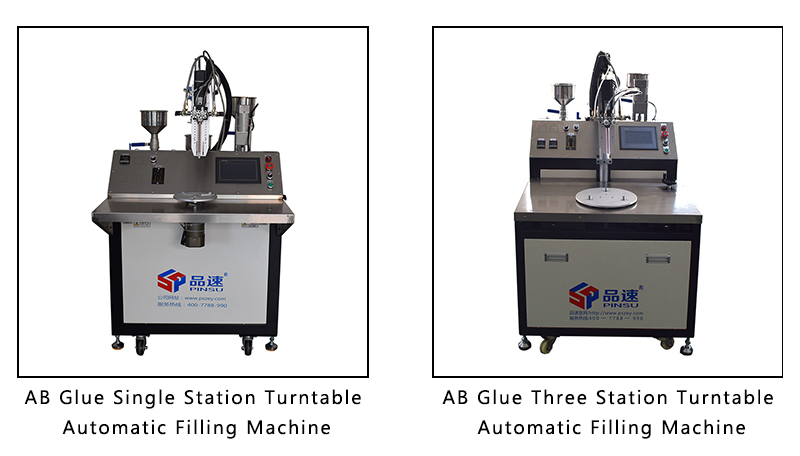

Machine name |
AB Glue Single Station Turntable Automatic Filling Machine |
AB Glue Three Station Turntable Automatic Filling Machine |
|
Machine model |
PS-PJ220F |
PS-PJ220FP |
|
Machine size（L*W*H） |
85*110*150CM |
85*125*150CM |
|
Applicable product sizes |
2-18CM |
5-12CM |
|
Machine weight |
150Kg |
170Kg |
|
Charging bucket capacity |
20L/30L/50L |
|
|
Cleaning bucket capacity |
5L |
|
|
Range of glue dosing proportion |
1：1-10：1 |
|
|
Measurement method |
Gear pump or screw pump (optional) |
|
|
Measurement accuracy |
±2% |
|
|
Glue dispensing accuracy |
±2% |
|
|
Mixed model |
Static mixing or dynamic mixing |
|
|
Electronic control system |
Touch screen +PLC |
|
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|
|
Machine Power |
1000W-2000W |
|
|
Operating pressure range |
0.4-0.8MPa |
|
|
Application |
Round product, rotary gluing |
Round product, rotary gluing |
【Machine Feature 】
1. AB glue automatic proportioning, automatic mixing, you can manually control the glue;
2. The machine is simple to operate and easy to learn;
3. The charging bucket is seamlessly welded, corrosion-resistant and easy to clean;
4. We use precision metering pump to measure the glue, metering accuracy ± 2%;
5. There is a liquid level sensor in the charging bucket, the glue is not enough to alarm, to remind the personnel need to pour glue into the barrel;
6. The machine comes with a cleaning device, it can be quickly cleaned efficiently on the mixing valve, mixing tube, convenient for the next use;
7. The amount of glue, glue time can be adjusted to ensure that the product filling quality.

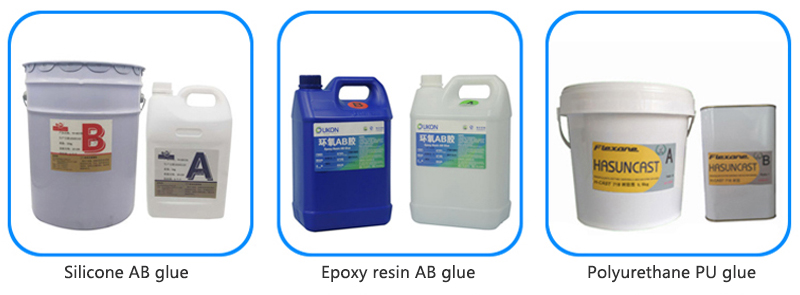

【Applicable Glue】
AB Glue Turntable Automatic Filling Machine for Epoxy resin AB glue, Polyurethane AB glue, Silicone AB glue

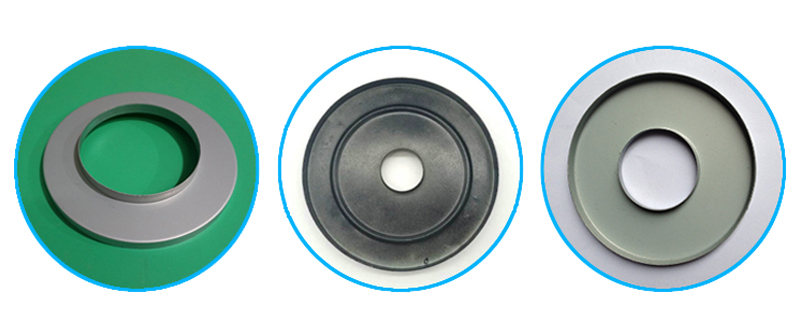

【Scope of Application】
AB Glue Turntable Automatic Filling Machine is used for Filter end caps, air filter end caps, water filter end caps, other round products.
