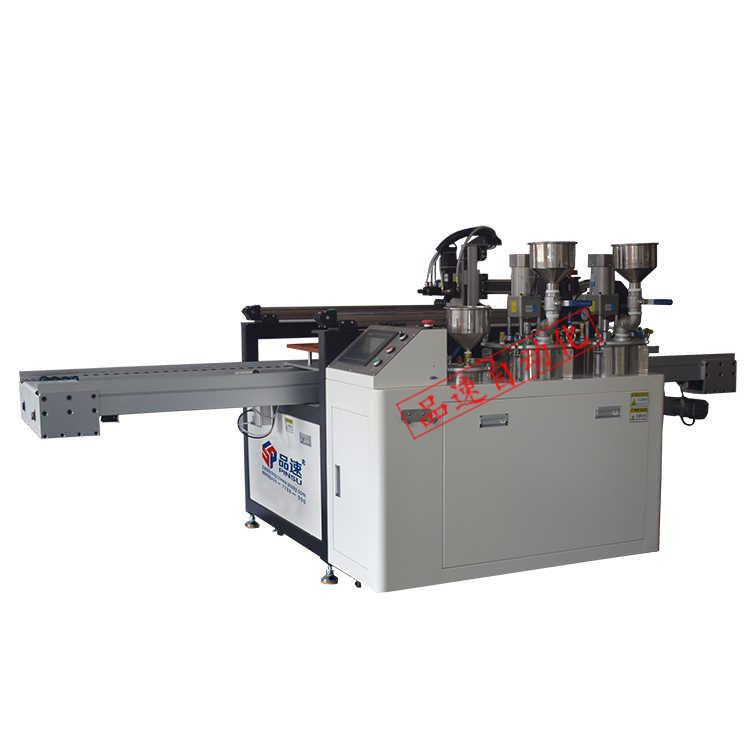

- Assembly line Automatic Glue Filling Machine
-
Product Number：PS-DJ
Product Brand：PINSU
Product Description：
Assembly line Automatic Glue Filling Machine used for Power adapters, transformers, motors, coils, pumps, high-voltage packages, inductors, capacitors, suction cups, displays, circuit boards.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
Assembly line Automatic Glue Filling Machine is used for 1:1-10:1 epoxy resin AB adhesive, polyurethane PU adhesive, silicone adhesive, etc. It can be combined with curing oven to form an automatic glue filling and curing assembly line.
【Machine Parameter】
|
Machine name |
Assembly line Automatic Glue Filling Machine |
|
Length of assembly line |
55*300CM |
|
Machine size（L*W*H） |
300*137*120CM |
|
Effective stroke（X/Y/Z） |
65*65*10CM |
|
Charging bucket capacity |
20L/30L/50L |
|
Number of gluey nozzle |
2-30 gluey nozzles can be made according to the product. |
|
Range of glue dosing proportion |
1：1-10：1 |
|
Measurement method |
Gear pump or screw pump (optional) |
|
Measurement accuracy |
±2% |
|
Electronic control system |
Touch screen +PLC+ Intelligent motion control card (with teaching box) |
|
Operation mode |
The stepper motor drives the belt |
|
Operation track |
Points, lines, circles, arcs, rectangles, S-shapes, etc |
|
Operation speed |
Max 400mm/s |
|
Repeatability |
±0.03mm |
|
Mixed model |
Static mixing or dynamic mixing |
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|
Machine Power |
3KW |
|
Operating pressure range |
0.5-0.8MPa |
【Machine Feature 】
1.AB glue automatic proportioning, automatic mixing, quantitative glue;
2.AB glue proportioning uniform, glue amount, glue time can be adjusted;
3. The machine can realize the running track of point, line, circle, arc, rectangle, S shape, etc., and the running speed can be adjusted;
4.AB glue barrel comes with liquid level sensor, remind to add glue when glue is not enough;
5. The machine comes with a cleaning device, the mixing valve, mixing tube automatic cleaning, convenient for the next use;
6. The machine can form an automatic glue filling and curing line with curing oven.

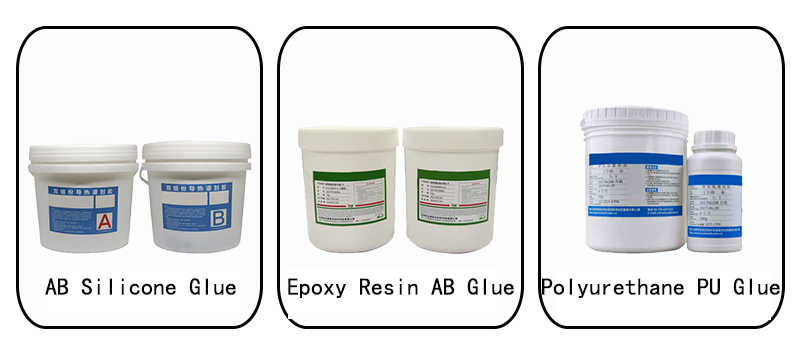

【Applicable Glue】
Assembly line Automatic Glue Filling Machine apply to 1:1-10:1 epoxy resin AB Glue, polyurethane PU Glue, AB silicone Glue.

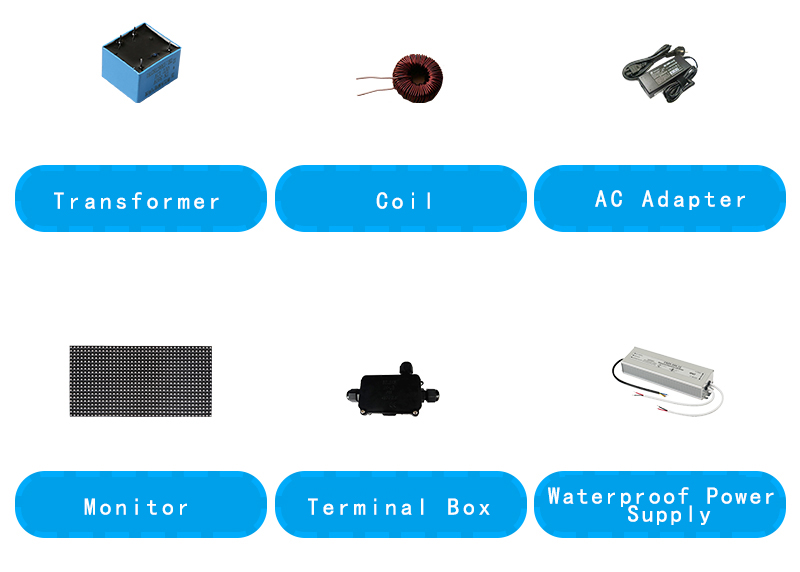

【Scope of Application】
Assembly line Automatic Glue Filling Machine used for Power adapters, transformers, motors, coils, pumps, high-voltage packages, inductors, capacitors, suction cups, displays, circuit boards.
