- Vacuum Glue Filling Machine
-
Product Number：PS-DJ451ZK
Product Brand：PINSU
Product Description：
Vacuum Glue Filling Machine apply to batteries, power supplies, adapters, instrument transformers, transformers, sensors, ignition coils, capacitors, power modules, motors.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
Vacuum Glue Filling Machine is a machine for filling glue in a vacuum environment, this machine is mainly used in high precision products need to be completed in a vacuum environment. We make reasonable configuration for the machine according to different glue (epoxy resin AB glue, polyurethane AB glue, silicone AB glue). Gluing technology is widely used in batteries, power supplies, adapters, instrument transformers, transformers, sensors, ignition coils, capacitors, power modules, motors and other products.
【Machine Parameter】
|
Machine name |
Vacuum Glue Filling Machine |
|
Machine model |
PS-DJ451ZK |
|
Machine size（L*W*H） |
195*120*160CM |
|
Effective stroke（X/Y/Z） |
40*35*10CM |
|
Vacuum box size |
104*104*70CM |
|
Machine weight |
800Kg |
|
Number of gluey nozzle |
1/2 |
|
Range of glue dosing proportion |
1：1-10：1 |
|
Mixed model |
Static mixing or dynamic mixing |
|
Charging bucket capacity |
20L/30L/50L |
|
Cleaning bucket capacity |
5L |
|
Measurement method |
Gear pump or screw pump (optional) |
|
Measurement accuracy |
±2% |
|
Glue dispensing accuracy |
±2% |
|
Electronic control system |
Touch screen +PLC+ Intelligent motion control card |
|
Operation mode |
The stepper motor drives the belt |
|
Operation track |
Points, lines, circles, arcs, rectangles, S-shapes, etc |
|
Repeatability |
±0.03mm |
|
Operation speed |
Max 300mm/s |
|
Machine Power |
2500W-4000W |
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|
Operating pressure range |
0.5-0.8MPa |
|
vacuum degree |
0～0.09Mpa（MAX） |
|
Vacuum pumping speed |
30L/S |
|
Vacuum extraction time |
35S |
【Machine Feature 】
1.AB glue can be automatically proportioning, automatic mixing, quantitative glue
2. The glue output of AB glue and the time of glue output can be adjusted;
3. xyz three-axis running speed can be adjusted, it can realize point, line, circle, arc, rectangle, S-shaped running track;
4. Ab glue barrel comes with liquid level sensor, when the glue is insufficient, the system will remind to add glue;
5. The machine comes with a cleaning device, which can automatically clean the mixing valve and mixing tube for next time use.
6. Three kinds of vacuum gluing process, it can meet the different process requirements of customers;
7. Fast vacuum pumping speed, the vacuum degree can reach 0 ~ 0.09Mpa (MAX), effectively removing the air bubbles in the gluing products.

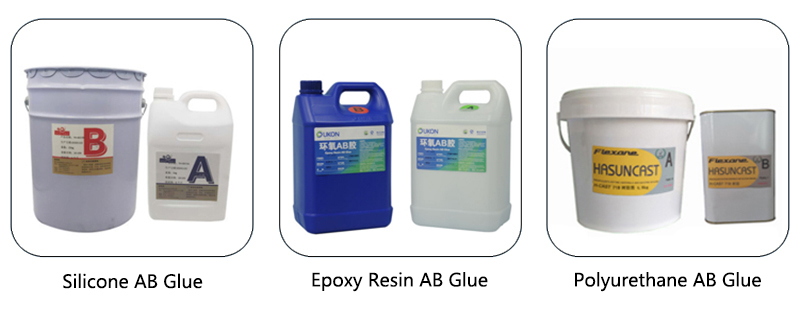

【Applicable Glue】
Vacuum Glue Filling Machine is suitable for epoxy resin AB glue, polyurethane AB glue, silicone AB glue.
【Scope of Application】
Vacuum Glue Filling Machine apply to batteries, power supplies, adapters, instrument transformers, transformers, sensors, ignition coils, capacitors, power modules, motors.
