- AB Glue Automatic Mixing Machine
-
Product Number：PS-PJ220
Product Brand：PINSU
Product Description：
AB Glue Automatic Mixing Machine applied to Power supply, charger, transformer, instrument transformer, capacitor, filter, home appliance control board and other products.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
AB Glue Automatic Mixing Machine is mainly used for two group glue proportioning. According to the proportion and type of glue, choose gear pump or screw pump (epoxy resin AB glue, polyurethane AB glue, silicone AB glue). The machine's glue dispensing precision is high, and can be used with other automation equipment, or can be used alone. Through function upgrading, it can be applied to many industry products, such as power supply, charger, transformer, instrument transformer, capacitor, filter, home appliance control board and other products.
【Machine Parameter】
|
Machine name |
|
|
Machine model |
PS-PJ220 |
|
Machine size（L*W*H） |
85*65*150CM |
|
Applicable product sizes |
85*45mm |
|
Machine weight |
130Kg |
|
Charging bucket capacity |
20L/30L/50L (optional) |
|
Cleaning bucket capacity |
5L |
|
Range of glue dosing proportion |
1：1-10：1 |
|
Measurement method |
Gear pump or screw pump (optional) |
|
Measurement accuracy |
±2% |
|
Glue dispensing accuracy |
±2% |
|
Mixed model |
Static mixing or dynamic mixing |
|
Electronic control system |
Touch screen +PLC |
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|
Machine Power |
1000W-2000W |
|
Operating pressure range |
0.4-0.8MPa |
|
Application |
AB Glue Proportioning |
【Machine Feature 】
1.AB glue automatic proportioning, automatic mixing, you can manually control the glue;
2. The machine is small, easy to move, simple to operate; easy to learn;
3. The charging bucket is seamlessly welded, corrosion-resistant and easy to clean;
4. We use precision metering pump to measure the glue, metering accuracy ± 2%;
5. There is a liquid level sensor in the charging bucket, the glue is not enough to alarm, to remind the personnel need to pour glue into the barrel;
6. The machine comes with a cleaning device, it can be quickly cleaned efficiently on the mixing valve, mixing tube, convenient for the next use;
7. The amount of glue, glue time can be adjusted to ensure that the product filling quality.
8. The automatic glue dispenser can be used alone or to form an automatic glue filling machine with other equipment.
【Applicable Glue】
AB Glue Automatic Mixing Machine For Epoxy Rresin AB Glue, Polyurethane AB Glue, Silicone AB Glue
【Scope of Application】

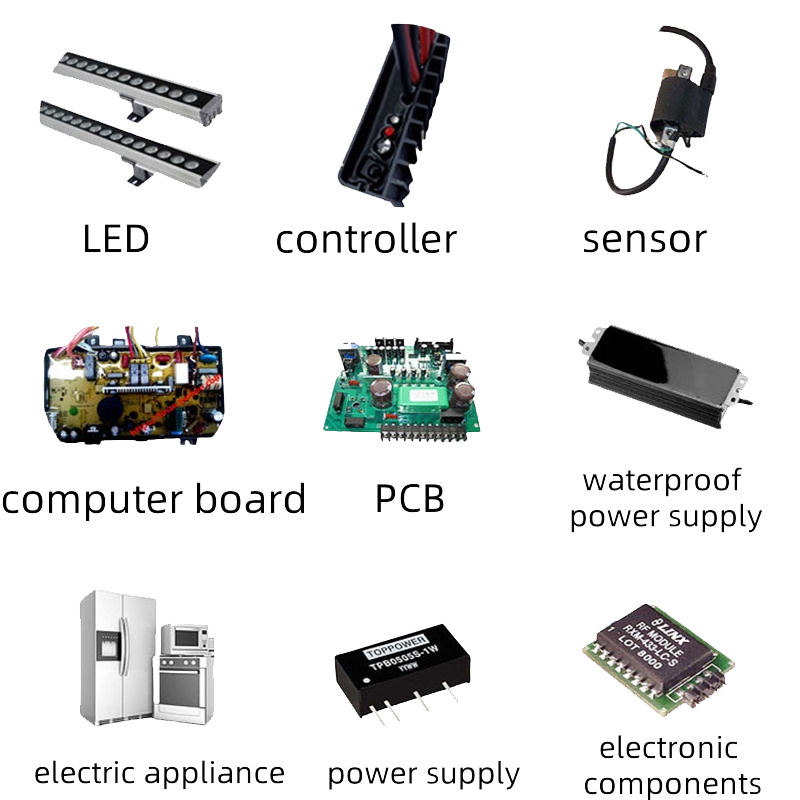

AB Glue Automatic Mixing Machine applied to Power supply, charger, transformer, instrument transformer, capacitor, filter, home appliance control board and other products.
