- Wallpaper Gluing and Curing Production Line
-
Product Number：PS-DJ
Product Brand：PINSU
Product Description：
Wallpaper Gluing and Curing Production Line applied to Wallpaper Gluing and Curing Production Line is mainly used for wallpaper, wall sticker loading and unloading, gluing, curing, cutting.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
【Machine Description】
Wallpaper Gluing and Curing Production Line is an automatic production line specially designed for wallpaper products, the machine can automatically discharge, automatically drip glue, automatic curing, automatic collection, automatic cutting off. Compared with single machine production, it can save 2 staff members, and one person can pay attention to multiple production lines, the products come out already dry, which can greatly shorten the production cycle time. Suitable for transparent epoxy resin glue, polyurethane glue.
【Machine Parameter】
|
Machine name |
|
|
Machine size（L*W*H） |
222*115*150cm+200cm*10 sections |
|
Effective stroke（X/Y/Z） |
40*50*10CM (Drip Stroke) |
|
Number of ovens |
8-10 |
|
Charging bucket capacity |
20L/30L/50L |
|
Cleaning bucket capacity |
5L |
|
Number of gluey nozzle |
2-30 gluey nozzles can be made according to the product. |
|
Range of glue dosing proportion |
1：1-10：1 |
|
Measurement method |
Gear pump |
|
Measurement accuracy |
±2% |
|
Electronic control system |
±2% |
|
Glue dispensing accuracy |
Touch screen +PLC+ Intelligent motion control card (with teaching box) |
|
Operation mode |
The stepper motor drives the belt or the servo system drives the belt |
|
Operation track |
Points, lines, circles, arcs, rectangles, S-shapes, etc |
|
Operation speed |
Max 300mm/s |
|
Repeatability |
±0.03mm |
|
Mixed model |
dynamic mixing |
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|
Machine Power |
2000W+26KW |
|
Operating pressure range |
0.5-0.8MPa |

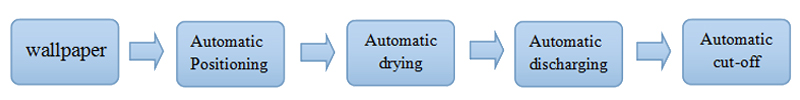

【Technological Process】

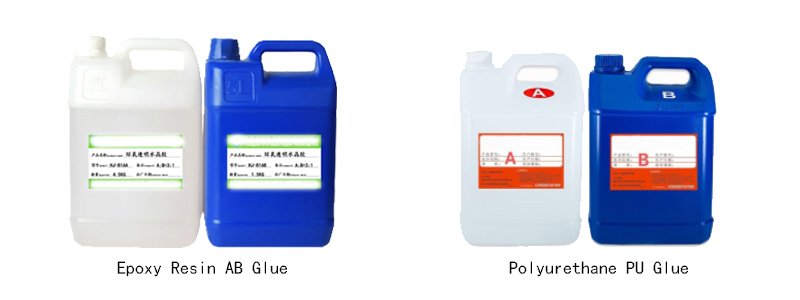

【Applicable Glue】
Wallpaper Gluing and Curing Production Line for 3:1 epoxy resin ab glue, 3:1 polyurethane glue.

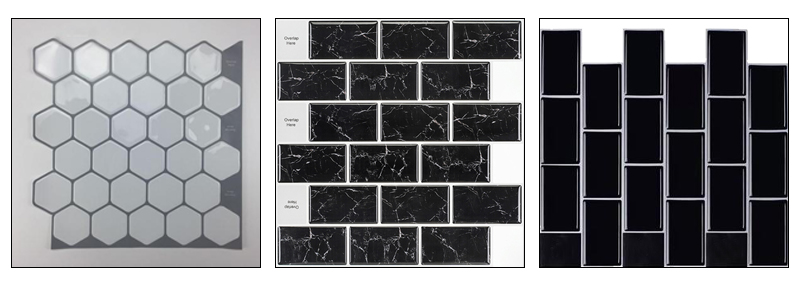

【Scope of Application】
Wallpaper Gluing and Curing Production Line applied to Wallpaper Gluing and Curing Production Line is mainly used for wallpaper, wall sticker loading and unloading, gluing, curing, cutting.
