- Vacuum Suction Cup Glue Drip Curing Production Line
-
Product Number：PS-DJ
Product Brand：PINSU
Product Description：
/uploads/image/aguanjiaoji/17211154681079.jpg
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
Vacuum suction cup curing production line mainly consists of AB glue automatic glue dripping machine, curing oven, assembly line, fixtures and so on, mainly used for car mobile phone suction cup bracket, bathroom suction cup bracket, kitchen storage box suction cup bracket and so on. Applicable glue: 100:30 or 100:25 polyurethane PU glue.
【Machine Parameter】
|
Machine name
|
|
|
Applicable Glue |
polyurethane PU glue. |
|
Range of glue dosing proportion |
100:30，100:25 |
|
Tank capacity |
20L/30L/50L（Optional） |
|
Tank Material |
304 stainless steel |
|
Mixed model |
dynamic mixing |
|
Number of nozzles |
1-2 (according to the actual situation) |
|
Glue dispensing accuracy |
±2% |
|
Measurement method |
2 gear pumps |
|
Measurement accuracy |
±2% |
|
XYZ effective stroke |
620*550*100mm |
|
Operation speed |
Max300mm/s |
|
Operation mode |
The stepper motor drives the belt |
|
Repeatability |
±0.05mm |
|
Operation mode |
Teaching box + PLC + touch screen |
|
Applicable power supply of glue filling machine |
220V/50hz |
|
Machine size |
11*1.56*1.525m（Custom-made according to the actual situation） |
|
Line size |
11*0.6m（Customisable） |
|
Number of ovens |
3節(jié)（Be added as appropriate） |
|
Oven size |
6*0.8米（Be added as appropriate） |
|
Oven Heating Power |
2000w |
|
Oven power supply |
380v |
|
Temperature control mode |
Thermostat |
|
Oven heating temperature |
Room temperature 25-120oC (adjustable per section) |
|
Temperature control precision |
±5oC |
|
Vacuum pump power |
1600w |
|
Glue heating temperature range |
20-100℃（Custom-made according to the actual situation） |
|
Glue heating temperature control mode |
Thermostat |
【Machine Feature 】
1. the machine realises automatic precision metering of two-component pu adhesive, automatic mixing and quantitative glue dripping;
2. all-in-one design, can achieve the suction cup product automatic drip glue, automatic curing;
3. according to the suction cup drip glue process tailor-made design, custom production;
4. the amount of glue drops, curing time can be manually set;
5. Reduce labour expenses, improve production efficiency and enhance the quality of suction cups for dripping glue.

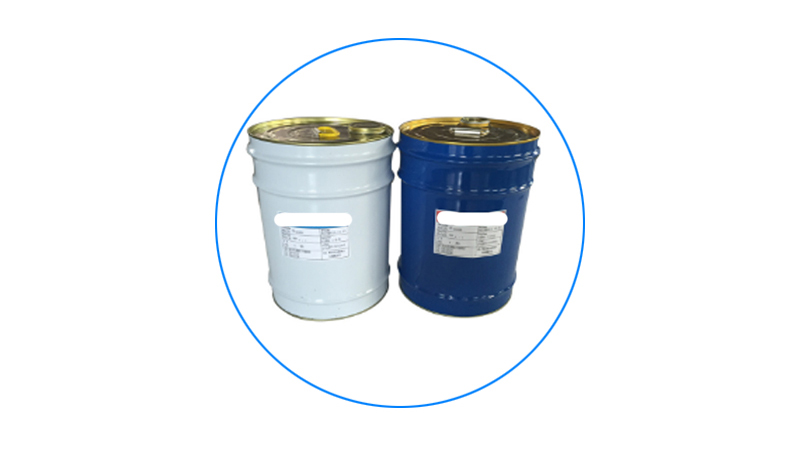

【Applicable Glue】
Vacuum Suction Cup Glue Drip Curing Production Line is used for applied to 100:30 or 100:25 polyurethane PU glue.
【Scope of Application】
Vacuum Suction Cup Glue Drip Curing Production Line is used for applied to Car mobile phone suction cup bracket, bathroom suction cup bracket, kitchen storage box suction cup bracket and so on.
