- Automatical visual dispensing machine
-
Product Number：SJ2530/SJ3040/SJ4060
Product Brand：PINSU
Product Description：
Fully automatic visual dispensing machine is used for UV adhesive, chloroprene adhesive, anaerobic adhesive, PUR adhesive, hotmelt adhesive, varnish, SMT red adhesive, aluminium paste, paint, printing ink.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
Automatical visual dispensing machine is customized according to customer's glue, paint ink, production process, product size and other factors. The machine adopts imported lead screw, CCD vision system, marble platform, automatic dispensing and other designs. Products in the machine can be placed at will 360 degrees, the system can automatically locate and identify. Automatical visual dispensing machine can be used for paint coloring, inking, dotting solder paste and other products process operation. The machine has left and right double camera recognition and double platform alternating automatic operation. Compared with manual dispensing, the production efficiency can be increased by 2-5 times.
【Machine Parameter】
|

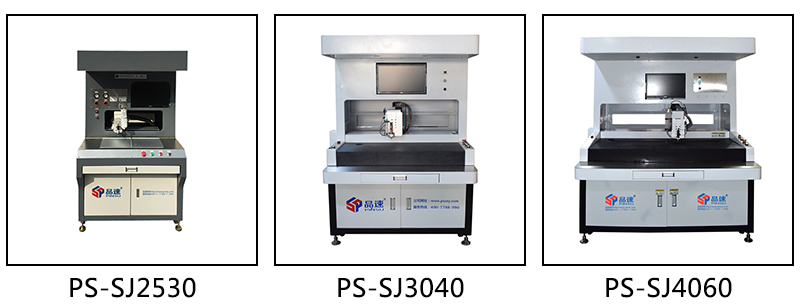

Machine name |
|||
|
Machine model |
PS-SJ2530 |
PS-SJ3040 |
PS-SJ4060 |
|
Machine size（L*W*H） |
100CM*115CM*180CM |
135CM*142CM*181CM |
179CM*174CM*196CM |
|
Number of cameras |
Single camera |
Two cameras |
Two cameras |
|
Number of operational platforms |
Mobile dual platform |
Left/Right Dual Platform |
Left/Right Dual Platform |
|
Recognition area |
25CM*30CM |
30CM*40CM |
40CM*60CM |
|
Machine weight |
290Kg |
590Kg |
630Kg |
|
Countertops Material |
Aluminum countertops |
Marble countertops |
Marble countertops |
|
Charging bucket capacity |
30ML\300ML\Pressure barrel |
||
|
Number of valves |
Single valve (Maximum 4) |
||
|
Measurement method |
Single valve for air pressure control |
||
|
Measurement accuracy |
±2% |
||
|
Electronic control system |
PC+monitor |
||
|
Operation mode |
Servo system control lead screws |
||
|
Operation track |
Points, lines, circles, arcs, rectangles |
||
|
Operation speed |
Max 500mm/s |
||
|
Repeatability |
±0.01mm |
||
|
Mixed model |
Single valve |
||
|
Power supply |
2000W |
||
|
Machine Power |
AC 110V/60HZ，AC 220V/50HZ |
||
|
Operating pressure range |
0.5-0.8MPa |
||
【Machine Feature 】
1. Servo motor and screw form XYZ running module, with fast speed, smooth running, low noise, Repeatability of ± 0.01mm.
2. he machine has visual recognition, automatic positioning function, the product can be placed arbitrarily on the table surface can be recognized;
3. Machine running speed, dispensing volume, dispensing time can be manually controlled, not only to improve production efficiency, but also to ensure product dispensing quality;
4. The machine comes with a suction function, which can quickly stop the glue, no dripping, no pulling.
【Applicable Glue】
Fully automatic visual dispensing machine is used for UV adhesive, chloroprene adhesive, anaerobic adhesive, PUR adhesive, hotmelt adhesive, varnish, SMT red adhesive, aluminium paste, paint, printing ink.
【Scope of Application】
The fully automatic visual dispensing machine is applied to Toys, lights, cell phones, electrical appliances, cars, buzzers, jewelry, metal tags, window paper-cut, car, fish eyes,computer,LED lighting, decorations, hanging pellets, inductors, transformers and other products dispensing.
