- Visual Paint Spotting Machine
-
Product Number：SJ3040
Product Brand：PINSU
Product Description：
Visual Paint Spotting Machine is mainly used for signage, nameplate, badges, school emblems, factory emblems, jewelry, logo, hardware, plastic parts and other products.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
Visual Paint Spotting Machine is customized according to customer's glue, paint ink, production process, product size and other factors. It can be used for paint coloring, inking, dotting solder paste and other products process operation. Products in the machine can be placed at will 360 degrees, the system can automatically locate and identify. Left and right double camera recognition, double platform can be alternately operated automatically. Compared with manual dispensing, the machine efficiency can be increased 2-5 times.
【Machine Parameter】
|
Machine model |
PS-SJ3040 |
|
Machine name |
Visual Paint Spotting Machine |
|
Number of cameras |
Two cameras |
|
Number of operational platforms |
Left/Right Dual Platform |
|
Recognition area |
30*40CM |
|
Machine weight |
590Kg |
|
Countertops Material |
Marble countertops |
|
Charging bucket capacity |
30ML\300ML\pressure barrel |
|
Number of valves |
Single valve (Maximum 4) |
|
Measurement method |
Single valve pneumatic control |
|
Measurement accuracy |
±2% |
|
Electronic control system |
PC+monitor |
|
Operation mode |
Servo system control lead screws |
|
Operation track |
Points, lines, circles, arcs, rectangles |
|
Operation speed |
Max 500mm/s |
|
Repeatability |
±0.01mm |
|
Mixed model |
Single valve |
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|
Machine Power |
2000W |
|
Operating pressure range |
0.5-0.8MPa |
【Machine Feature 】
1. Servo motor and screw form XYZ running module, with fast speed, smooth running, low noise, Repeatability of ± 0.01mm.
2. The machine has visual recognition, automatic positioning function, the product can be placed arbitrarily on the table surface can be recognized;
3. Machine running speed, paint dispensing volume, paint dispensing can be manually controlled, not only to improve production efficiency, but also to ensure product dispensing quality;
4. The machine comes with a suction function, which can quickly stop paint spotting, no dripping, no pulling.

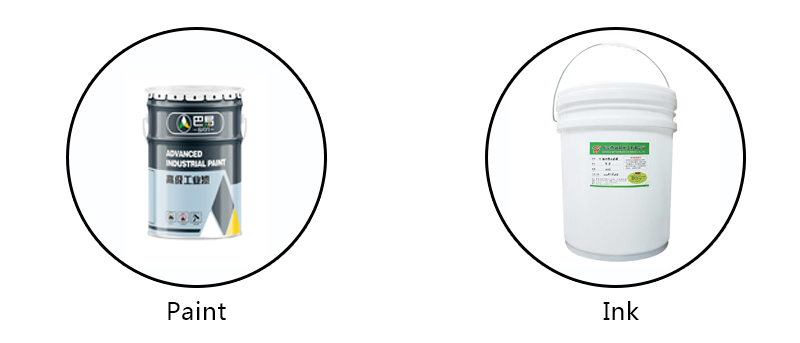

【Applicable liquids】
Visual Paint Spotting Machine are mainly used for paint and ink dispensing.

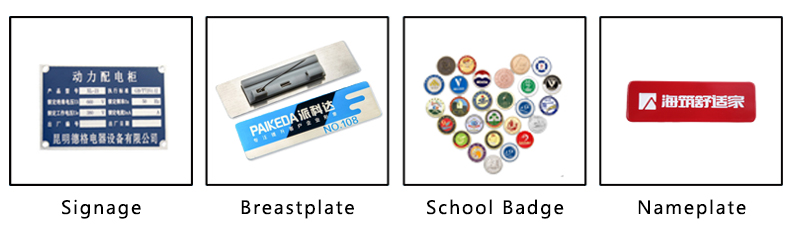

【Scope of Application】
Visual Paint Spotting Machine is mainly used for signage, nameplate, badges, school emblems, factory emblems, jewelry, logo, hardware, plastic parts and other products.
