- AB Glue Dual Supply System Vision Dispensing Machine
-
Product Number：PS-SJ4060S
Product Brand：PINSU
Product Description：
AB Glue Dual Supply System Vision Dispensing Machine apply to crystal stickers, jewelry, metal label, window paper-cut, fisheye, decorations, hanging tablets, intelligent cards, inductors, power supplies, mutual inductors, high-voltage vessel, energy meters, and other products.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video

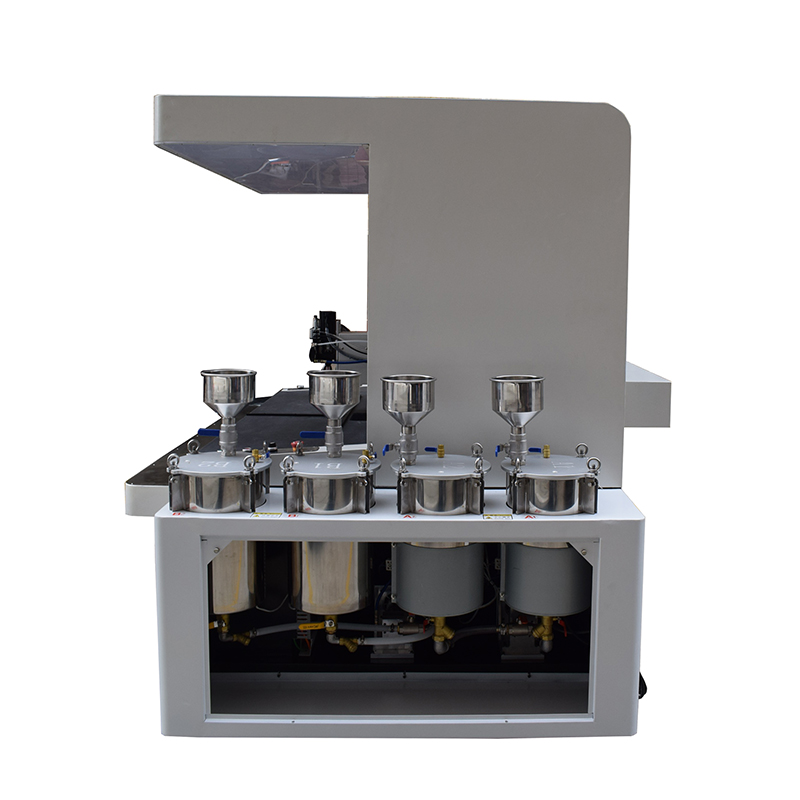

AB glue double glue supply system vision dispenser adopts 2 sets of AB glue supply system. The machine adopts imported lead screw, CCD vision system, marble platform, automatic dispensing and other designs. Products in the machine can be placed at will 360 degrees, the system can automatically locate and identify. It can realize automatic proportioning, dosing and mixing of AB glue, fully automatic completion.The machine is characterized by left and right double camera recognition and double platform alternating operation. Compared with manual dispensing, the efficiency can be increased 2-5 times. The machine has a wide range of applications, including crystal stickers, jewelry, metal label, window paper-cut, fisheye, decorations, hanging tablets, intelligent cards, inductors, power supplies, mutual inductors, high-voltage vessel, energy meters, and other products.
【Machine Parameter】
|
Machine name |
AB Glue Dual Supply System Vision Dispensing Machine |
|
Machine model |
PS-SJ4060S |
|
Machine size（L*W*H） |
214*174*196CM |
|
Number of operational platforms |
Left/Right Dual Platform |
|
Number of cameras |
Two cameras |
|
Recognition area |
40*60CM |
|
Charging bucket capacity |
4pcs |
|
Countertops Material |
Marble countertops |
|
Machine weigh |
740kg |
|
Charging bucket capacity |
20L/30L |
|
Cleaning bucket capacity |
5L |
|
Number of valves |
2-30 gluey nozzles can be made according to the product. |
|
Range of glue dosing proportion |
1：1-10：1 |
|
Measurement method |
Gear pump or screw pump (optional) |
|
Number of metering pumps |
4 (dual glue supply system) |
|
Measurement accuracy |
±2% |
|
Electronic control system |
PC+monitor+PLC+Touch screen |
|
peration mode |
Servo system control lead screws OR the servo system drives the belt |
|
Operation track |
Points, lines, circles, arcs, rectangles |
|
Operation speed |
Max 500mm/s |
|
Repeatability |
±0.01mm |
|
Mixed model |
Static mixing or dynamic mixing |
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|
Machine Power |
2000-4000W |
|
Operating pressure range |
0.5-0.8MPa |
【Machine Feature 】
1. The machine adopts 2 sets of glue supplying system to supply glue, the proportioning accuracy ± 2%;
2. Adopt WINDOWS2000/XP operation interface, easy to learn and understand;
3. The machine can realize the operation track of point, line, circle, arc, rectangle, S shape, etc., and the operation speed can be adjusted;
4. Large-capacity solid-state hard disk, to achieve fast reading, and software with regional arrays, translation and rotation operations and other functions;
5. The amount of glue, glue coating speed, dispensing time, stopping time can be parameterized, the amount of glue is stable, no leakage of glue;
6. AUTO CAD file can be imported to simplify the operation accurately;
7. With CDD auxiliary program editing and teaching functions, shorten the program editing time, greatly improve efficiency.

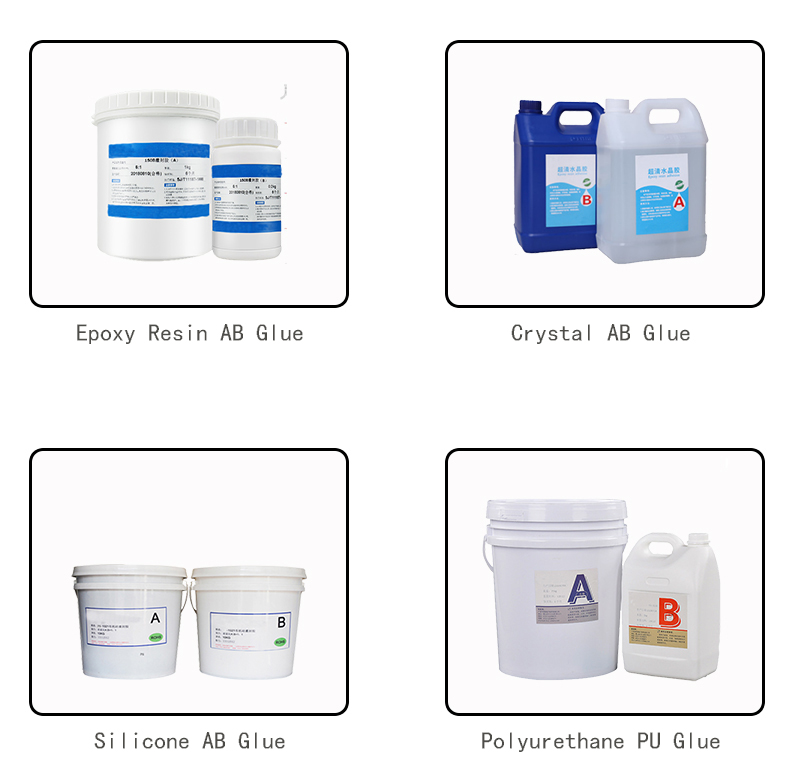

【Applicable Glue】
AB Glue Dual Supply System Vision Dispensing Machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB Glue, polyurethane PU Glue, silicone AB Glue, transparent epoxy resin AB Glue, pouring sealant.

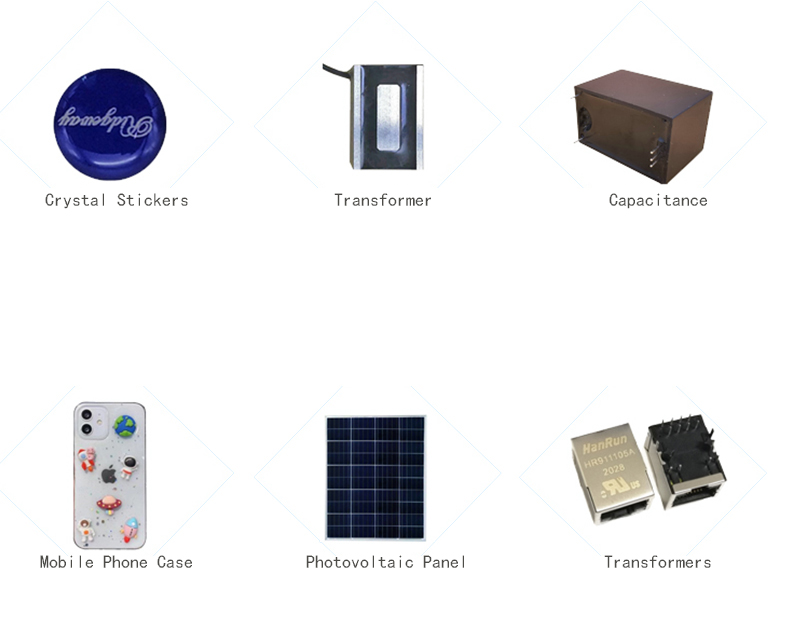

【Scope of Application】
AB Glue Dual Supply System Vision Dispensing Machine apply to crystal stickers, jewelry, metal label, window paper-cut, fisheye, decorations, hanging tablets, intelligent cards, inductors, power supplies, mutual inductors, high-voltage vessel, energy meters, and other products.
