- AB glue visual dispensing machine
-
Product Number：SJ2530S/SJ3040S/SJ4060S/SJ4060HS
Product Brand：PINSU
Product Description：
AB glue visual dispensing machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive, transparent epoxy resin AB adhesive, pouring sealant.
- +86-400-7788-990
- Product Parameters
- Application Industry
- App Video
【Machine Description】
AB glue visual dispensing machine is customized according to customer's glue, paint ink, production process, product size and other factors. The machine adopts imported lead screw, CCD vision system, marble platform, automatic dispensing and other designs. Products in the machine can be placed at will 360 degrees, the system can automatically locate and identify. Not only can it form double liquid dispensing with automatic dispenser, but also can realize automatic proportioning, dosing and mixing of AB glue. The machine is characterized by left and right double camera recognition and double platform alternating operation. Compared with manual dispensing, the efficiency can be increased 2-5 times. The machine has a wide range of applications, including crystal stickers, jewelry, metal label, window paper-cut, fisheye, decorations, hanging tablets, intelligent cards, inductors, power supplies, mutual inductors, high-voltage vessel, energy meters, and other products.

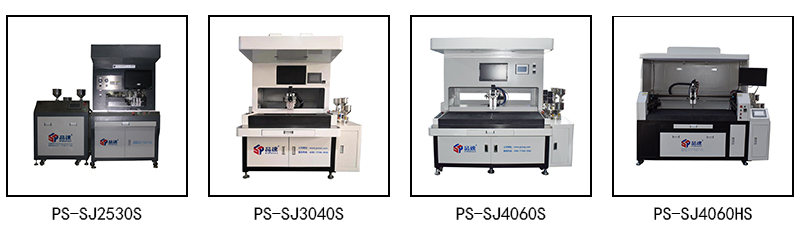

【Machine Parameter】
|
Machine name |
||||
|
Machine model |
PS-SJ2530S |
PS-SJ3040S |
PS-SJ4060S |
PS-SJ4060HS |
|
Machine size（L*W*H） |
185*115*180CM |
189*164*187CM |
214*174*196CM |
215*114*196cm |
|
Number of operational platforms |
Mobile dual platform |
Left/Right Dual Platform |
Left/Right Dual Platform |
Left/Right Dual Platform |
|
Number of cameras |
Single camera |
Two cameras |
Two cameras |
Two cameras |
|
Recognition area |
25*30CM |
30*40CM |
40*60CM |
40*60CM |
|
Machine weight |
390Kg |
670Kg |
700Kg |
730Kg |
|
Countertops Material |
Aluminum countertops |
Marble countertops |
Marble countertops |
Marble countertops |
|
Charging bucket capacity |
20L/25L |
|||
|
Cleaning bucket capacity |
5L |
|||
|
Number of valves |
2-30 gluey nozzles can be made according to the product. |
|||
|
Range of glue dosing proportion |
1：1-10：1 |
|||
|
Measurement method |
Gear pump or screw pump (optional) |
|||
|
Measurement accuracy |
±2% |
|||
|
Electronic control system |
PC+monitor+PLC+Touch screen |
|||
|
Operation mode |
Servo system control lead screws OR the servo system drives the belt |
|||
|
Operation track |
Points, lines, circles, arcs, rectangles |
|||
|
Operation speed |
Max 500mm/s |
|||
|
Repeatability |
±0.01mm |
|||
|
Mixed model |
Static mixing or dynamic mixing |
|||
|
Power supply |
AC 110V/60HZ，AC 220V/50HZ |
|||
|
Machine Power |
2000-4000W |
|||
|
Operating pressure range |
0.5-0.8MPa |
|||
【Machine Feature】
1. The machine realizes automatic precision measuring and proportioning of AB glue and automatic mixing;
2. Servo motor and screw form XYZ running module, with fast speed, smooth running, low noise, Repeatability of ± 0.01mm.
3. The machine has visual recognition, automatic positioning function, the product can be placed arbitrarily on the table surface can be recognized;
4. Machine running speed, dispensing volume, dispensing time can be manually controlled, not only to improve production efficiency, but also to ensure product dispensing quality;
5. The machine comes with a cleaning device, which can automatically clean the mixing valve and mixing tube for the next use;
6. The machine comes with a suction function, which can quickly stop the glue, no dripping, no pulling.
7. The machine barrel comes with liquid level sensor, when the glue quantity is insufficient, the system will automatically alarm to remind to add glue.

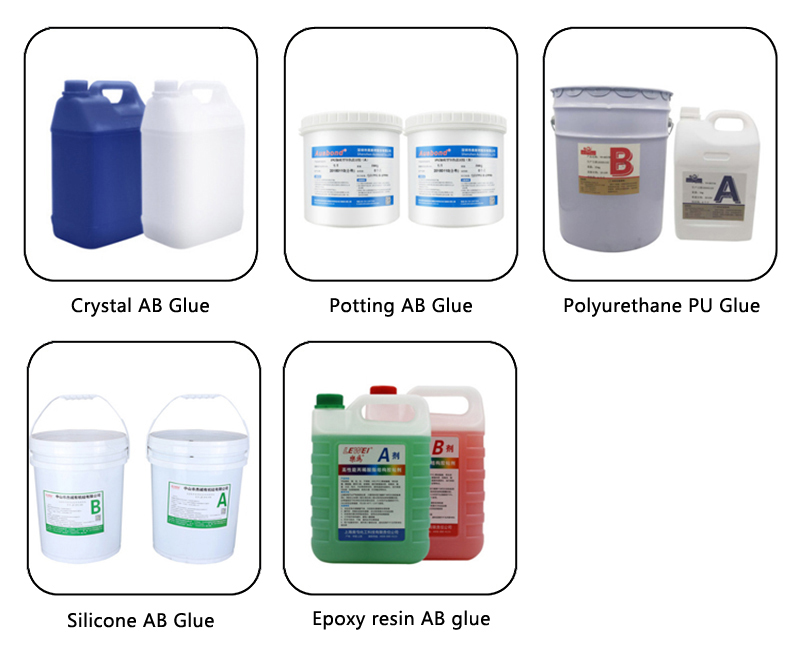

【Applicable Glue】
AB glue visual dispensing machine is suitable for 1:1-10:1 fixed ratio adjustable epoxy resin AB adhesive, polyurethane PU adhesive, silicone AB adhesive, transparent epoxy resin AB adhesive, pouring sealant.
【Scope of Application】
AB glue visual dispensing machine is used for Negative ion generator, sensors, transformers, inductors, relays, ballasts, PCB, control boards, instrument transformer, high voltage packages, photovoltaic panels, 3D Fish Eye Sticker, self-adhesive labels, stickers, badges, Car Stickers, jewelry, refrigerator stickers, acrylic products, handicrafts and so on.
